Chi tiết sản phẩm
Nguồn gốc: Trung Quốc
Hàng hiệu: HL
Chứng nhận: ISO9001
Số mô hình: tùy chỉnh
Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu: 10 chiếc
Giá bán: 5-80USD
chi tiết đóng gói: Đóng gói trong hộp giấy
Thời gian giao hàng: 35 ngày làm việc
Điều khoản thanh toán: L/C,T/T, Công Đoàn Phương Tây
Khả năng cung cấp: 100000 chiếc mỗi tháng
Loại chủ đề: |
Bên ngoài/Nội bộ |
Hỗ trợ tùy chỉnh: |
OEM, ODM Nơi sản xuất |
độ cứng: |
92 |
đóng gói: |
10 cái/hộp |
Vật mẫu: |
Có sẵn |
Áo khoác: |
PVD\CVD |
Loại chủ đề: |
Bên ngoài/Nội bộ |
Hỗ trợ tùy chỉnh: |
OEM, ODM Nơi sản xuất |
độ cứng: |
92 |
đóng gói: |
10 cái/hộp |
Vật mẫu: |
Có sẵn |
Áo khoác: |
PVD\CVD |

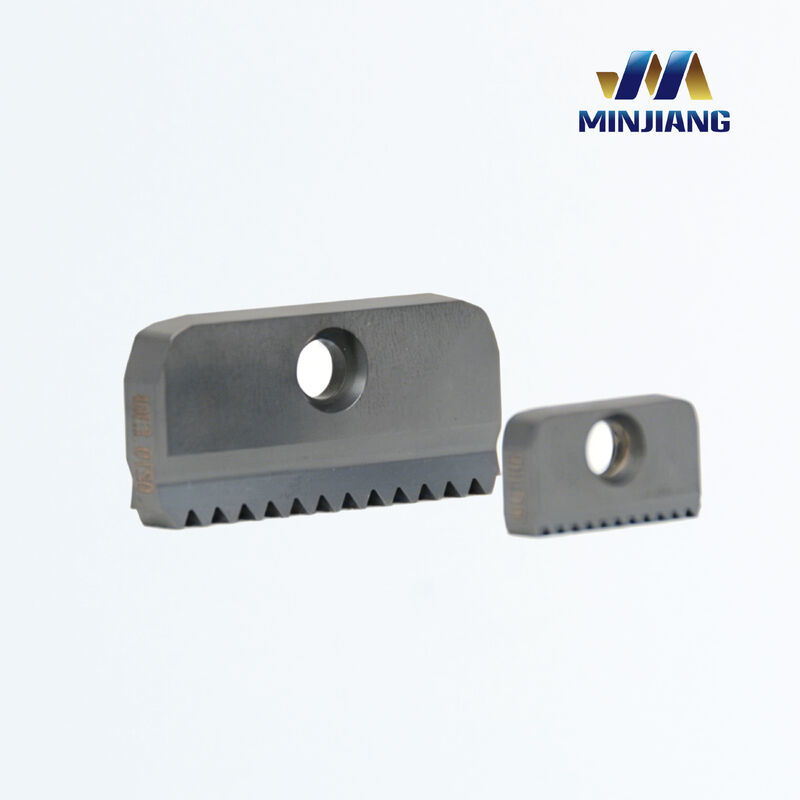

Carbide threading inserts are high-performance cutting tools for precision threading in demanding applications. Made from hard, durable carbide, they feature specialized geometries for superior accuracy on materials such as aluminum, brass, titanium, and stainless steel. With excellent wear resistance and high-temperature tolerance, they support high-speed threading. Available in various sizes and shapes, these inserts offer flexibility, reliability, and outstanding results.nce and reliability, carbide threading inserts are an excellent choice for the most demanding threading operations.
Durability
Ensures long-term performance. We rigorously test each part to verify it can withstand real-world operating conditions.
Corrosion Resistance
Protects parts from environmental damage. Special coatings are applied to defend against corrosion and ensure reliable service in harsh elements.
Stress Testing
Validates structural integrity under pressure. Through a series of comprehensive tests, we confirm that each part can endure the strain and demands of regular operation.
| Name | Description | Features | Application Areas |
|---|---|---|---|
| ISO | ISO Metric Full Profile Thread Insert is a tool with a complete thread profile, designed to meet ISO Metric thread standards. |
Complying with ISO standards ensures that the processed threads have uniform size and precision, and the full-profile design improves processing efficiency. Made of high-quality materials, with high hardness and wear resistance
|
|
| W | Threads specially designed for pipe connections | The tooth angle of Whitworth thread is 55°, which is different from many other thread standards. The rounded top and bottom of the thread can reduce the wear of the thread tool on the top and improve its fatigue resistance. |
|
| TR | 30° Trapezoidal thread | Trapezoidal thread refers to a metric trapezoidal thread with a tooth angle of 30°.Trapezoidal threads are mainly used for transmission, have high strength and rigidity requirements, are not easy to loosen, and have high transmission efficiency. |
|
| ACME | ACME trapezoidal thread cutter is a tool specially designed for processing ACME trapezoidal threads, with specific angle and shape design. |
The ACME thread usually has a tooth angle of 29° (there are other angles such as 30°, but 29° is the most common), and the tooth profile is trapezoidal, wider at the bottom and narrower at the top.
|
|
| UNJ | UNJ thread is a mechanical thread with high strength and durability, especially suitable for applications requiring high strength and reliable connection. |
High strength: Compared with cUNJ threads have higher strength. The external thread bottom of UNJ threads is in an arc shape. This design helps to reduce stress concentration and increase the fatigue life of the threads.
|
|
| NPT | The NPT thread has a tooth angle of 60° and a taper of 1:16. |
NPT threads can provide reliable sealing performance. NPT threads comply with the US National Pipe Thread Standard (ANSI/ASME B1.20.1, etc.) and have good versatility and interchangeability.
|
|
| NPTF | NPTF thread is a thread standard for pipe connections developed by the American National Standards Institute (ANSI), mainly used in North America. |
Sharp tooth shape and short root: higher connection stability and security. NPTF thread has good self-locking performance, can provide greater load-bearing capacity, high tooth shape accuracy, and can prevent leakage without sealing medium.
|
|
At Minjiang, we are driven by a passion to deliver the highest quality products and services. We continually seek innovative, cost-effective solutions to meet our customers' evolving needs. Our dedicated customer service team focuses on building and maintaining strong client relationships, committed to going above and beyond to ensure your satisfaction. With knowledgeable professionals, we strive to offer competitive pricing and optimal solutions. Our goal is simple: to exceed expectations and provide an unparalleled customer experience.
1. Q: Are your prices competitive?
A: Yes. We offer reliable, high-quality products at competitive prices.
2. Q: How do you ensure product quality?
A: Raw materials are tested before bulk production. We also inspect physical properties, shape, and tolerances prior to shipping to ensure only qualified products are delivered.
3. Q: What are the advantages of using Carbide Threading Inserts?
A: Compared to traditional threading methods, carbide threading inserts offer higher precision, superior surface finish, and excellent thread accuracy with minimal tool wear. They also require less torque and power, reducing cutting time and overall costs.
